Product Introduction:

Industry Applications

Telescopic Belt Conveyor is automated conveyor equipment for easy loading and unloading. Virtually any industry with heavy shipping and receiving needs will reap significant rewards from implementing a telescopic belt conveyor solution. Widely used in E-commerce, Third party logistics, Food, Beverages, Pharmaceuticals, Clothes, Furniteure and FMCG etc.

Suitable for variety of vehicle/ truck/container
Conform to ergonomic operating conditions
Fast loading and unloading
Simple, safe and reliable
Easy maintenance
Loading capacity: 60kg/m

Reduce manual handling, reduce labor intensity
High efficient operation up to more than 2000 PPH
Standard work to make loading or unloading orderly
Save labor more than 2/3 based on original loading way
Minimum the accident during loading, even zero incidence
Improve the working environment


APOLLO Telescopic Belt Conveyor provides the highest level of productivity for large volume, shipping and receiving applications for any type factory or distribution center. Its biggest advantage is providing an ergonomic operating conditions, the operator could adjust the conveyor to achieve a perfect position via buttons to control extending and retracting, loading or unloading easily and efficiently, all the actions will be real-time feedback to the operator by electronics. Automate your loading and unloading areas and convey a variety of products from large or small cartons to loose bags and tires.


All key components use the top famous brnad only, like SEW motor, Siegling motor, the electrical compontens are Schneider or Siemens to  ensure the most reliable stability and reduce the failure rate to the greatest extend. All of our telescopic conveyors feature a VFD controlled belt drive system providing smooth transitions from belt starts and stops at speeds up to 40m/minute. They also include a VFD controlled extension drive providing smooth operation when extending and retracting the conveyor.

Fixed Telescopic Conveyor2

Frame use hugh quality carbon steel, get the advanatges of impact resistance, fatigue resistance and high strength. Steel structure design, using the finite element analysis method and optimize the stress structure, so that the whole stress get balanced and extend the using life of machine. At the same time, the maximum extebsion length and minimum retraction length are guaranteed. Maximum sections APOLLO can do is 6 sections with 16 meters extension.

Fixed Telescopic Conveyor3

Standard Specifications:

Model Sections Total length C(mm) Retracted length A(mm) Extension length B(mm) Height(mm) Belt width(mm) Installation way
A3-6+8 3
14000 6000 8000 800 600/800/1000 Fixed Type
A3-7+9.5 16500 7000 9500 800 600/800/1000 Fixed Type
A4-5+10  4
15000 5000 10000 900 600/800/1000 Fixed Type
A4-6+12 18000 6000 12000 900 600/800/1000 Fixed Type
A4-7+14 21000 7000 14000 900 600/800/1000 Fixed Type
A4-8+16 24000 8000 16000 900 600/800/1000 Fixed Type
A5-6+15 5
21000 6000 15000 950 600/800/1000 Fixed Type
A5-7+18 25000 7000 18000 950 600/800/1000 Fixed Type
A6-4.5+13  6 17500 4500 13000 1050 600/800/1000 Fixed Type
A6-5+16 21000 5000 16000 1050 600/800/1000 Fixed Type

Optional Configurations:

Fixed Telescopic Conveyor0
Fixed Telescopic Conveyor1
Fixed Telescopic Conveyor2
Fixed Telescopic Conveyor3
Fixed Telescopic Conveyor4
Fixed Telescopic Conveyor5

Frequently Asked Questions:

1. Are you manufacturer or trader? and your location?

APOLLO is a manufacturer esatablised in 2010, located in Suzhou city.

2. Can customize as our requests?

APOLLO can supply customized product to suit for your needs.

3. Can the running direction to be bidriectional?

Yes, the direction can be switched for loading or unloading operation.

4. Can we adjust speed and what is the maximum speed?

Yes, the speed is adjustable. Standard maximum speed is up to 40m/minute.

5. What is your warranty terms?

Warranty time is one year, in case need parts to replace within warranty, APOLLO will provide free of charge.

Product Features:


4 directions buttons, easy operation


Equip with tower light, easy to see machine status


Anti-clamping roller, avoid the risk of clamping hands for operators


The gap between each section is small and the brush is installed for safe use


Simens PLC control system gets convenient remote maintenance and after-sales service


Schneider VFD to adjsut speed, quality stable


SICK sensor at front to prevent goods fall (optional)


Side guides for align goods (optional)


Wireless remote control (optional)

Production Process:

Production Process

Cut steel plate by laser

Production Process1


Production Process2


Production Process3


Production Process7

Install belt

Production Process6


Production Process5

Powder coating

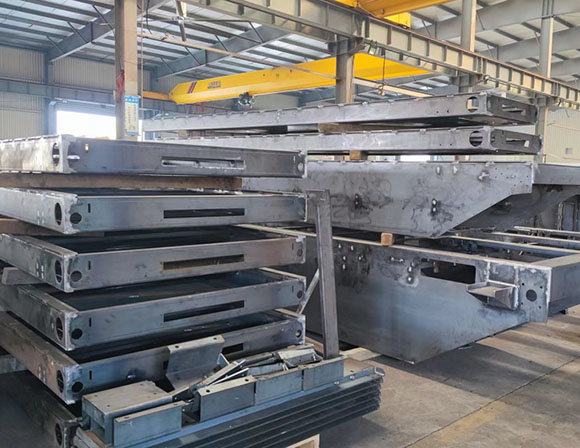

Production Process4

Forming frame

Production Process8


Production Process9

Buttons test

Fixed Telescopic Conveyor7

Finished products

Fixed Telescopic Conveyor8

At user site
