Movable Telescopic Belt Conveyor With Motorized System For Easy Movement

Movable Telescopic Belt Conveyor With Motorized System For Easy Movement

Product Introduction:

Industry Applications

Movable Telescopic Conveyor is suitable for unfixed loading/unloading sites. Machine can move randomly, conveniently change position according to the goods or the position of the trucks / containers. Widely used in E-commerce, Third party logistics, Food, Beverages, Pharmaceuticals, Clothes, Tires, Furniteure and FMCG etc.

Movable Telescopic Conveyor1

One operator can move machine easily
Improve the flexibility of operation within bigger space
One conveyor can serve for multiple loading doors
Shorten the time of loading and unloading, reduce labor intensity

The Maximum loading amount up to 2250 per hour if based on standard loading speed of 30 m/min for carton (800x600mm)
Labor can reduce more than 2/3 based on original loading way
Minimum the lowest accident in the process of loading, even zero incidence
Promote the enterprise image, conform to the requirements of the modern enterprise

Movable Telescopic Conveyor2

Telescopic Belt Conveyor gives you precise control at the shipping dock by extending length into the end of the truck trailer. A full set of operation buttons improve the loading and unloading efficiency of goods in truck and bring convenient operation. When add caster wheels or install the telescopic belt conveyor at rail or equip with motorized movement system, it can improve the flexibility of operation with bigger space, solve the easy and efficient loading or unloading goods. You press a button only then the conveyor can travel anywhere you want.

Movable Telescopic Conveyor3

Telescopic belt conveyor can freely extend on the length direction according to the loading requirements through adjusting buttons. Operation height conforms to ergonomic design, easy to handle goods, reduce the labor intensity of workers.
Goods type: carton, bag, parcel, luggage, tire, plastic box, barrel etc.
Loading capacity: 50kg/m (standard)
Move type: manual movement, rail traverse movement, motorized movement.

Movable Telescopic Conveyor4

Standard Specifications:

Movable Telescopic Conveyor5
Model Sections Total length C(mm) Retracted length A(mm) Extension length B(mm) Height(mm) Belt width(mm) Mobile way
  M3-6+8 3 14000 6000 8000 900 600/800/1000 Manual / Motorized
M3-7+9.5 16500 7000 9500 900 600/800/1000 Manual / Motorized
  M4-5+10 4 15000 5000 10000 900/1050 600/800/1000 Motorized
M4-6+12 18000 6000 12000 900/1050 600/800/1000 Motorized
  M4-7+14 21000 7000 14000 1100 600/800/1000 Rail
  M4-8+16 24000 8000 16000 1100 600/800/1000 Rail

Optional Configurations:

Movable Telescopic Conveyorss01
Movable Telescopic Conveyorss02
Movable Telescopic Conveyorss03
Movable Telescopic Conveyorss04
Movable Telescopic Conveyorss05
Movable Telescopic Conveyorss06

Frequently Asked Questions:

1. Which movement way is the most convenient?

Motorized movement by battery.

2. How to move the conveyor when equip with motorized system?

Only need one operator to control the handle bar and press button with little labor.

3. Can one telescopic belt conveyor be used for multiple loading doors?

Yes, you can move the conveyor to any loading door you want.

4. Wheels are enough to bear the weight of conveyor?

Yes, we use high quality Nylon wheels with big capacity.

5. What is your warranty terms?

Warranty time is one year, in case need parts to replace within warranty, APOLLO will provide free of charge.

Product Features:

Movable Telescopic Conveyorsss0

Equip with tower light, easy to see machine status; 4 directions buttons, easy operation

Movable Telescopic Conveyorsss1

Simens PLC control system gets convenient remote maintenance and after-sales service

Movable Telescopic Conveyorsss2

Schneider VFD to adjsut speed, quality stable

Movable Telescopic Conveyorsss3

Control handle to operate the movement of conveyor

Movable Telescopic Conveyorsss4

DC type travel motor for easy movement

Movable Telescopic Conveyorsss5

Equip with battery as the power for motorized movement

Movable Telescopic Conveyorsss6

Easy entry for maintenance from back cover

Movable Telescopic Conveyorsss7

Anti-clamping roller, avoid the risk of clamping hands for operators

Movable Telescopic Conveyorsss8

Equip with sensors to prevent goods fall (optional)

Production Process:

Telescopic Conveyo11

Cut steel plate by laser

Telescopic Conveyo12


Movable Telescopic Conveyorsssx2


Movable Telescopic Conveyorsssx3


Movable Telescopic Conveyorsssx7


Movable Telescopic Conveyorsssx6


Movable Telescopic Conveyorsssx5

Powder coating

Movable Telescopic Conveyorsssx4

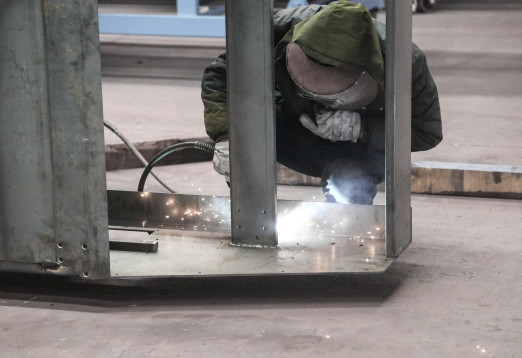

Forming frame

Movable Telescopic Conveyorsssx8

Finished product

Movable Telescopic Conveyorsssx9

Telescopic test

Movable Telescopic Conveyorsssx10

Movement test

Movable Telescopic Conveyorsssx11

Deliver at user's site

Factory Show:

Movable Telescopic Conveyor6

More Videos Show (Youtube):

Our innovation is at your service

Consumer behavior has changed, supply chains have not. Let's talk today to find perfect design and make your loading or unloading more easy, more safe, more efficiency.
