High Efficiency Spiral Conveyor For Vertical Transfer Between Different Floors

High Efficiency Spiral Conveyor For Vertical Transfer Between Different Floors

Product Introduction:

Industry Applications

Spiral Conveyor is a lifting or descending equipment with good stability and suitable for wide range of goods. Mainly used for the transmission of goods between the height difference. Spiral Conveyor can supply the temporary storage for goods, or up and down continuous handling. Widely used inn in E-commerce, beverages, tobaccos, postal service, newspaper industry, printing, food, pharmaceutical, cloth, electronic products and other industries.


Carbon steel and stainless steel both available
High efficient for vertical transfer
Maximum speed up to 60m/min
Maximum capacity 50kg/m
Single driven, easy control

Small space occupuation
Low frication structure, stable and reliable
Low noise running, quiet and comfortable
Long performance life, able to 7*24 hours running
Built-in protection for loose chain, stuck goods/overload protection

Spiral Conveyor2

APOLLO Spiral Conveyors are based on a new and innovative technology, offering many features and benefits. APOLLO uses low friction slat and rolling friction bearing, which has the characteristics of low wear and low noise. APOLLO adopts modular parts and the inserted slat by injection mounding, which has good toughness and strength. The production is the full assembly process, each part is standard part, each size is unique, workers cannot interfere with the size during assembly.

Spiral Conveyor3

Spiral Conveyor can be combined with the infeed and oufeed conveyors to compose a complete set of lifting system to meet the vertical transportation needs for large logistic centers. Multiple units superposition can get higher height, APOLLO also allows different floors multiple entry, efffectively reduce the cost of vertical transportation. APOLLO adopts modular design which allows multiple specifications available to meet different size of good, also brings easy installation, can deliver goods in fully assembled or disassembled to meet the site condition of different users.

Spiral Conveyor4

Standard Specifications:

Spiral Conveyor5
Model Slat Width Abutting Conveyor Width Run Speed Rated Load Diameter Machine Height   Frame Material
5030-500 500mm 580mm ≤40m/min
≤50kg/m φ 2200mm Single unit≤10m
( if higher than 10m,
can superpose multiple units)
Carbon steel
Stainless steel 304
5030-650 650mm 730mm ≤40m/min
≤50kg/m φ2550mm Single unit≤10m
( if higher than 10m
can superpose multiple units)
Carbon steel
Stainless steel 304

Frequently Asked Questions:

1. Can you customize height as our request?

Yes, height can be customized.

2. What's the maximum size of products your spiral conveyor can handle?

Maximum L800*W600*H500mm.

3. Can the spiral conveyor run bidirectional or one direction only?

Only one direction, either upward or downward running.

4. What's the maximum speed of your spiral conveyor?

Maximum 60m/minute.

5. What equipment we need for lift the spiral conveyor?

Normally need forklift or crane according to your site condidtion.

Site Installation Shows:

Site Installation Shows 01

Total 23m consist of 3 units

Site Installation Shows 02

Height 9.5m

Site Installation Shows 03

Height 7m

Site Installation Shows 04

Total 13.6m consist of 2 units

Site Installation Shows 05

Height 8m

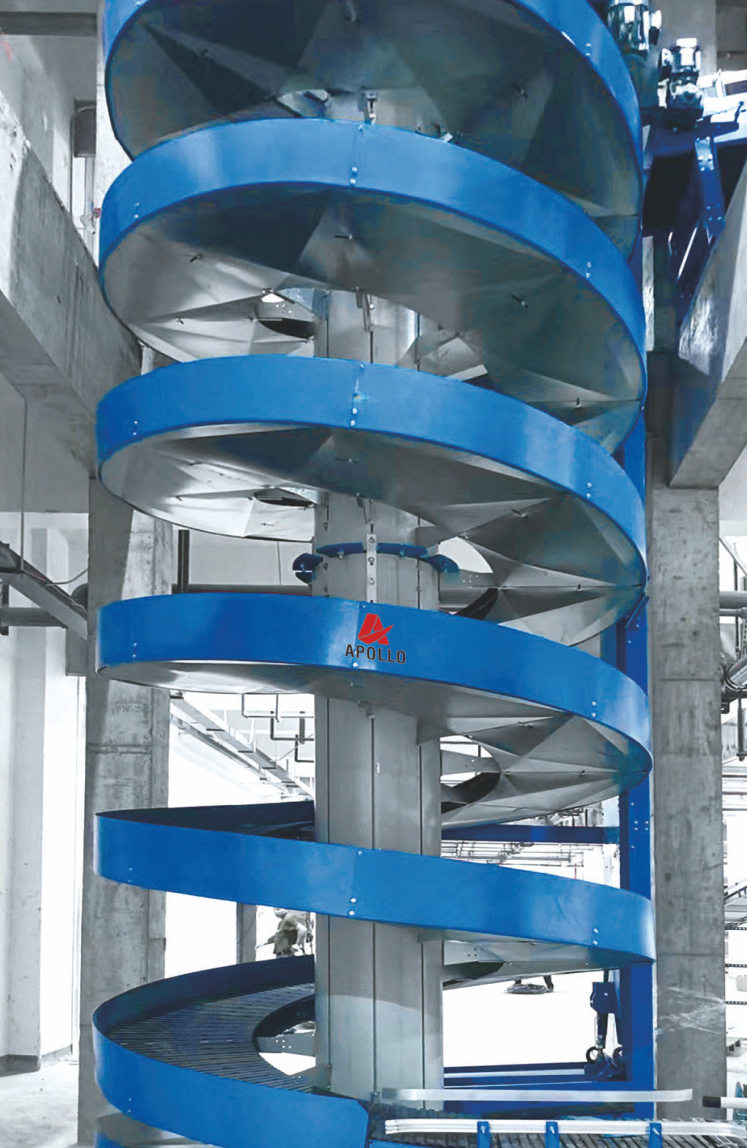

Site Installation Shows 06

Height 17.8m

Production Process:

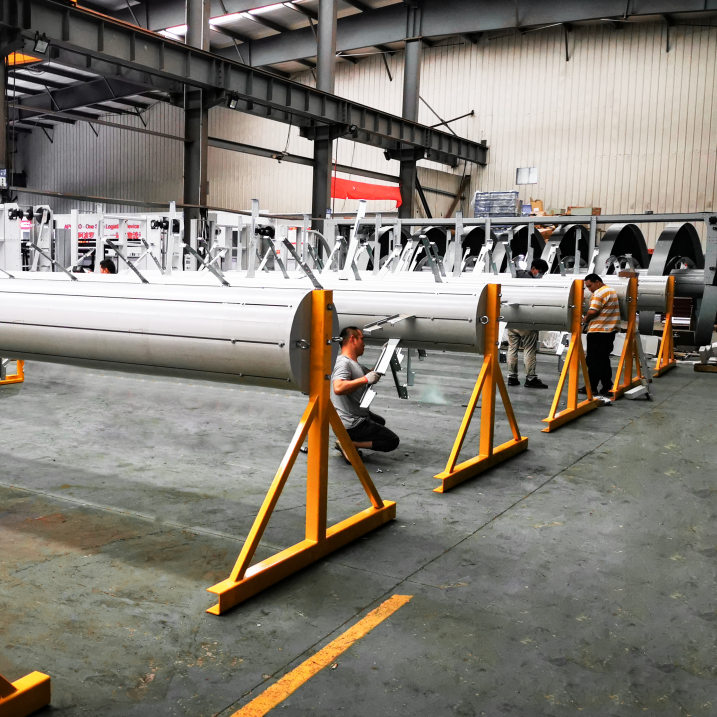

Spiral Conveyors01

Center column fabricate

Spiral Conveyors02

Spiral plate assembly

Spiral Conveyors03

Slat track installation

Spiral Conveyors06

Lifting for running test before delivery

Spiral Conveyors05

Noise test

Spiral Conveyors04

Install slat

Factory Show:

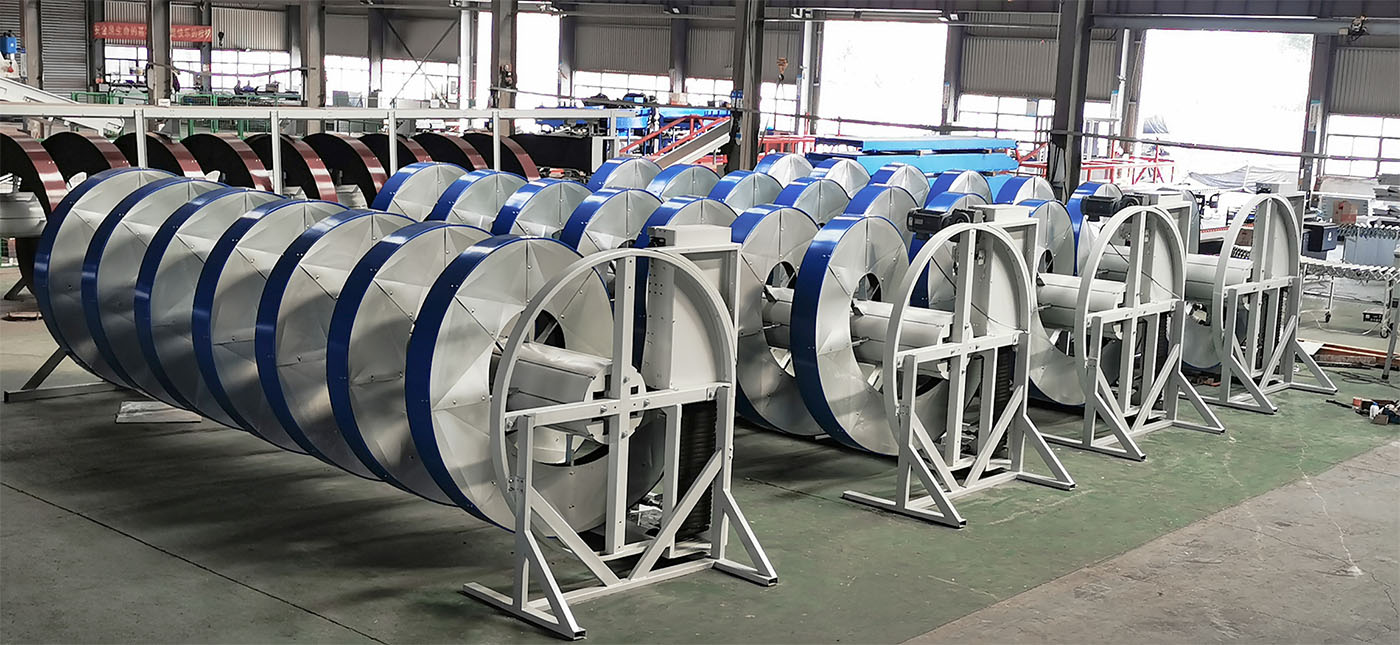

Spiral Conveyor6

More Videos Show (Youtube):

Our innovation is at your service

Consumer behavior has changed, supply chains have not. Let's talk today to find perfect design and make your vertical transfer more easy, more safe, more efficiency.
